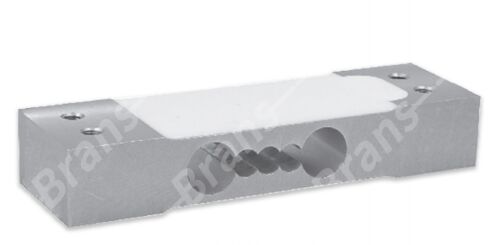

WL-115 Precision Aluminum Alloy Single Point Load Cell
WL-115 Precision Aluminum Alloy Single Point Load Cell
Features & Applications
The WL-115 is a precision-engineered single point load cell fabricated from high-grade aluminum alloy, offering exceptional linearity and minimal creep. Designed for direct platform mounting, this single point load cell eliminates the need for complex check-rod assemblies, simplifying system design.
With rated capacities of 35kg and 50kg, this single point load cell is optimized for medium-capacity scales and balances. The anodized aluminum construction of this single point load cell provides excellent corrosion resistance, ensuring long-term reliability in harsh environments.
Key specifications of this single point load cell include a high input resistance and low deflection under load, contributing to rapid stabilization in dynamic weighing applications. Each single point load cell is calibrated to achieve tight output uniformity, allowing multiple units of this single point load cell to be used in parallel for larger-scale systems.
The WL-115 single point load cell features a standard 4-wire cable configuration, with options for shielded or extended-length cables available upon request. This single point load cell is fully compatible with most industrial indicators and junction boxes, making it a drop-in solution for system integrators.
In production environments, this single point load cell delivers consistent performance in price computing scales and checkweighers. The robust design of this single point load cell ensures resistance to side loads and off-center impacts, maintaining accuracy over millions of cycles. For OEMs seeking a reliable single point load cell, the WL-115 represents a cost-effective, high-performance choice.
Specifications
| Capacity |
35~50kg |
| Combined Error |
0.017%F.S. |
| Non-linearity |
0.017%F.S. |
| Repeatability |
0.017%F.S. |
| Rated Output |
2.0±10%mV/V |
| Zero Balance |
±0.02%mV/V |
| Insulation Resistance |
≧5000MΩ/100VDC |
| Recommended Excitation |
10~15VDC |
| Material |
Aluminum Alloy |
| Safe Overload |
150%F.S. |
| Protection Class |
IP66(Customizable) |
| Operation Temp. |
-20~60°C |
| Cable Size |
Ф4x1500mm(Customizable) |
Dimensions(mm)
Load direction
Wiring code
Shipping & Packaging
To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.
Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
